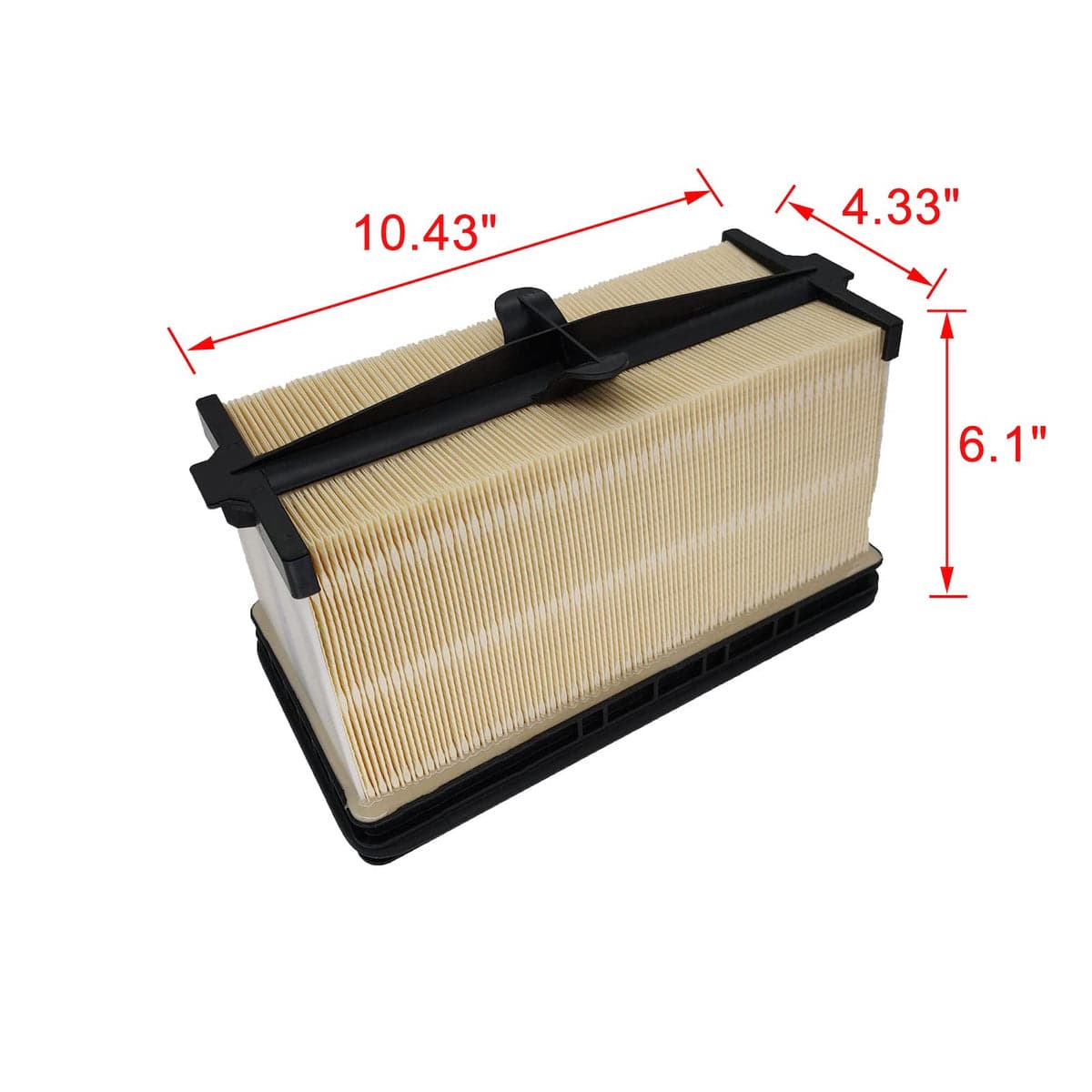

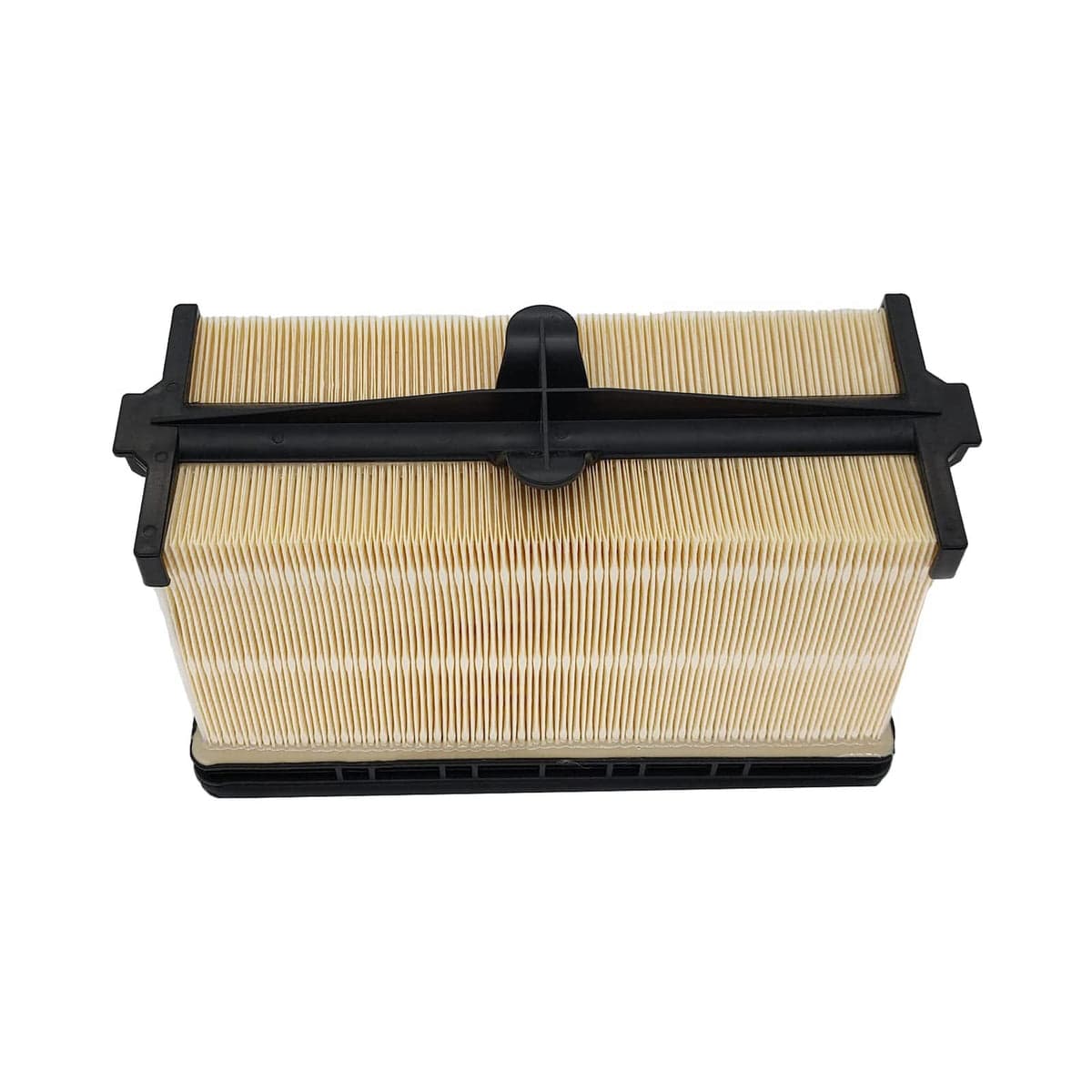

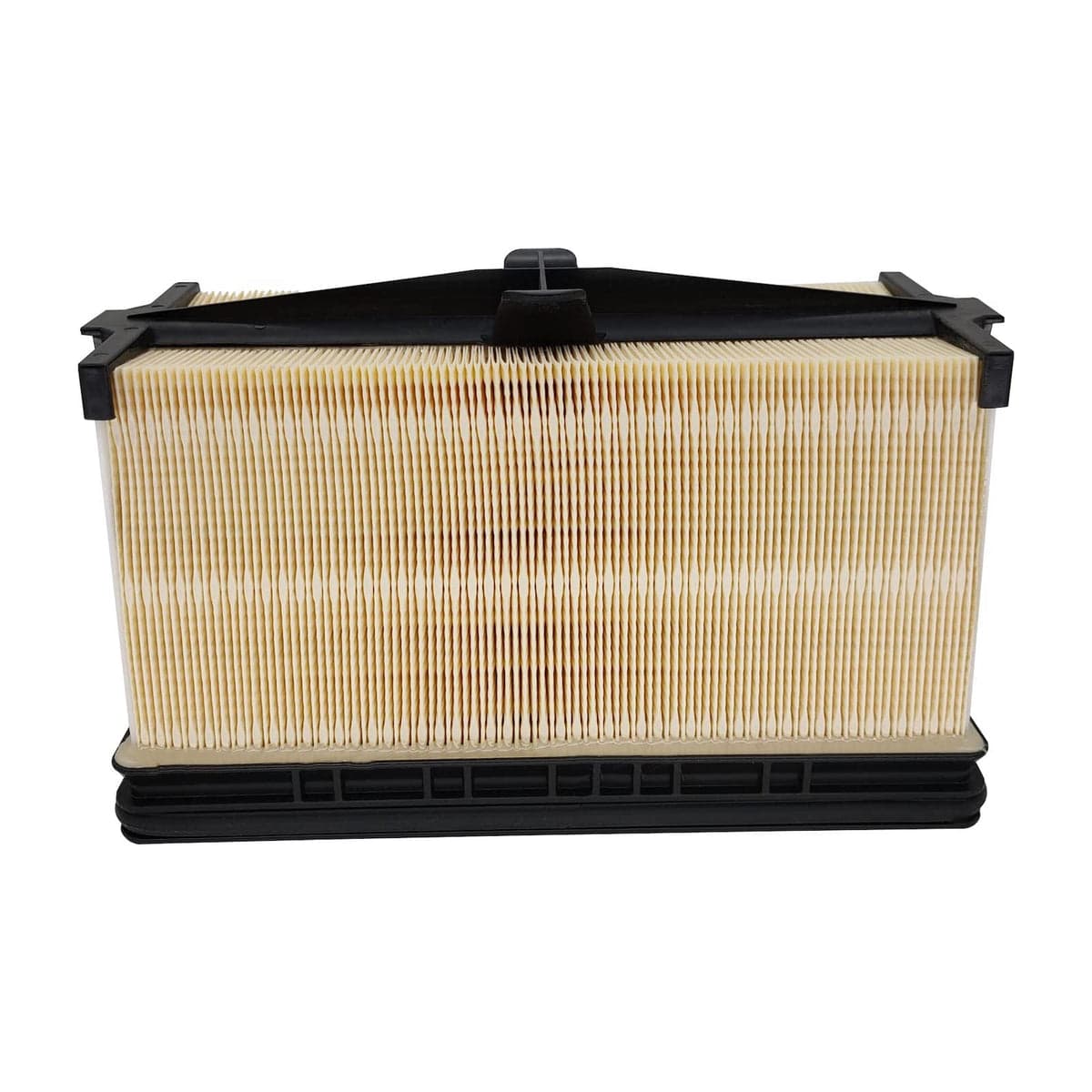

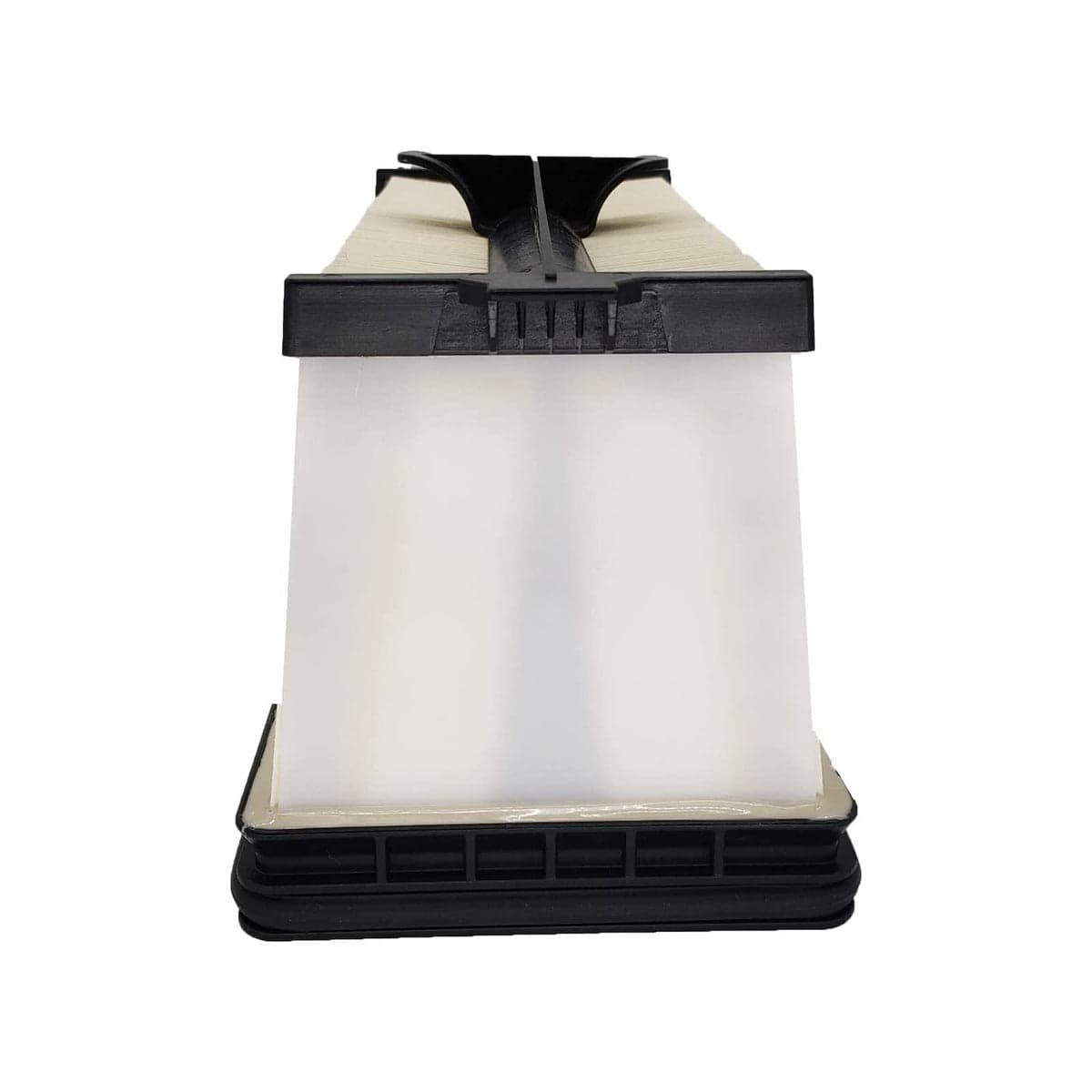

7010030 Heavy-Duty Air Filter (Bobcat Loaders)
The FJ-AF0030 is a heavy-duty dry-type engine air filter for Bobcat A770, S740, S770, S850, T740, T770 and T870 loaders. It replaces Bobcat 7010030 and cross-referenced 7286652. High-capacity pleated cellulose/synthetic media holds dust and protects the diesel engine and turbocharger on construction, demolition and farm sites. Disposable: never wash or blow out with compressed air.
| Tier Pricing (USD / unit) | |
|---|---|
| Qty | Unit Price |
| 1+ units | $39.99 |
| 10+ units🎯 Recommended | $35.99 |
| 50+ units | $32.79 |
| 100+ units | $29.99 |
📋 Key Specs
| Part Number | 7010030 (replaces 7286652) |
| Filter Type | Dry-type, disposable element |
| Media | Pleated cellulose/synthetic blend |
| Application | Diesel engine air intake |
| Fitment | Bobcat A770, S740, S770, S850, T740, T770, T870 |
| Service Interval | 250-500 hours (per operator manual) |
| Cleaning | Do not wash or blow out |
❓ FAQ
Follow the service interval in your Bobcat operator manual — typically every 250-500 operating hours. Shorten it in heavy dust such as demolition, concrete cutting and dry agriculture, and inspect the element at each daily pre-operation check.
No. This is a disposable dry-type element: do not wash it and do not blow it out with compressed air. Compressed air can tear the filter media and let dust pass through. Fit a new element at every service interval.
The 7010030 / 7286652 element is specified for Bobcat A770, S740, S770, S850, T740, T770 and T870 loaders. For other models, check the filter part number in your machine's parts manual before ordering, because different models use different housings.
Check the restriction indicator on the filter housing if your machine has one, and look for heavy dust caking, oil contamination or damaged pleats. Symptoms of a clogged element include black smoke under load, reduced power and higher fuel consumption.
No. Some Bobcat housings use an outer primary element plus an inner safety element. The safety element is not replaced at every service and must never be cleaned; replace it only if the primary filter was damaged or if visible dust reaches the safety element.
Description
Heavy-duty air filtration for Bobcat loaders
The FJ-AF0030 is a dry-type engine air filter element for Bobcat A770, S740, S770, S850, T740, T770 and T870 loaders. It replaces Bobcat part 7010030 and the cross-referenced 7286652. Pleated cellulose/synthetic blend media with high dirt-holding capacity keeps abrasive dust out of the diesel engine and turbocharger in construction, demolition and agricultural work.
Construction
- Type: dry-type, disposable engine air filter element
- Media: pleated cellulose/synthetic blend
- Dirt-holding capacity: high, for dusty heavy-equipment duty
- Cleaning: none — do not wash or blow out with compressed air
Fitment
- Bobcat A770 — all-wheel steer loader
- Bobcat S740, S770, S850 — skid steer loader
- Bobcat T740, T770, T870 — compact track loader
Service interval
Replace according to your machine's operator manual — typically every 250-500 operating hours. Shorten the interval in heavy dust: demolition, concrete cutting and dry agricultural work.
Installation notes
- Open the air filter housing and note the orientation of the old element before removal.
- Wipe dust from the housing and cover; never let loose debris fall into the intake.
- Seat the new element squarely so the sealing lip contacts the housing all the way round.
- Close the housing latches evenly; a poor seal lets unfiltered air bypass the element.
- If the housing uses an inner safety element, leave it in place and do not clean it.
Cross-reference
- Bobcat: 7010030
- Bobcat: 7286652
What is in the box
1 x 7010030 air filter element. The housing and any inner safety element are not included — this is the outer primary element only.
📄 Downloads
- FJ-AF0030-datasheet-en.pdf · 2 KB
