R12T Marine Fuel Water Separator Kit, Outboard, 10 Micron
Complete ready-to-install R12T fuel water separator: anodized 6061 aluminum head, 10-micron 120AT-style spin-on element and clear nylon drain bowl. Standard NPT ZG1/4-19 ports deliver 15 GPH primary filtration and water separation for diesel marine, automotive and industrial engines.
| Tier Pricing (USD / unit) | |
|---|---|
| Qty | Unit Price |
| 1+ units | $23.99 |
| 10+ units🎯 Recommended | $21.59 |
| 50+ units | $19.67 |
| 100+ units | $17.99 |
📋 Key Specs
| Filtration | 10 micron (nominal) |
| Flow rate | 15 GPH (57 LPH) |
| Port thread | NPT ZG1/4-19 |
| Head material | Anodized 6061 aluminum |
| Bowl material | Chemical-resistant clear nylon |
| Kit includes | Head + element + bowl + 4 brass fittings + 2 plugs |
❓ FAQ
FJFilter (Wuhu Youfan Auto Parts Co., Ltd.) is a precision filtration manufacturer. We design and produce fuel, oil, air, hydraulic, marine, cabin-air and CCV filters for global B2B buyers, with in-house tooling, die-casting, injection moulding, CNC machining and assembly in a 15,000 m² plant with 20+ lines; IATF 16949 and ISO 9001 certified, OEM/ODM and customer-brand production supported.
MOQ varies by product: 5–100 units for standard parts (see product page). Tier pricing decreases with volume. Custom parts usually ≥ 50 units, evaluated by process.
Stock/short-run: 8–50 days; bulk orders 35–60 days, depending on the actual order quantity and the agreed shipping method; custom 45 days or more incl. sampling, confirmed with the quotation. Note your deadline in the inquiry — sales will confirm capacity.
Add products to the inquiry list and submit with contact info. Sales contact you within 24h and issue a formal quotation (tier pricing + proforma invoice) within 72h. For custom parts or items developed from drawings, the quotation timeline is agreed with you case by case. The AI assistant can pre-fill inquiries in chat.
Yes. We develop from drawings/samples and support private labeling. Process: evaluation → sampling (15–40 days if a separate sample round is required) → approval → mass production.
Payment: T/T 30% deposit + 70% before shipment / L/C / Trade Assurance. Shipping: FOB Ningbo/Shanghai, CIF or DDP; EU & NA warehouses; sea/air/express. Where customs clearance and declaration are involved, freight is charged at actual cost and settled against the freight forwarder's invoice; for small consignments you may specify the shipping method, but not the carrier.
ISO 9001 & IATF 16949; CE/UL/ATEX on key products. Every batch ships with inspection reports; third-party inspection (SGS/BV) supported.
Description
Product Overview
The R12T fuel water separator kit arrives ready to install: anodized 6061 aluminum filter head, 10-micron 120AT-style spin-on element and clear nylon drain bowl in one package. Standard NPT ZG1/4-19 ports with a 15 GPH rating deliver primary filtration and water separation for diesel marine, automotive and industrial engines.
Key Features

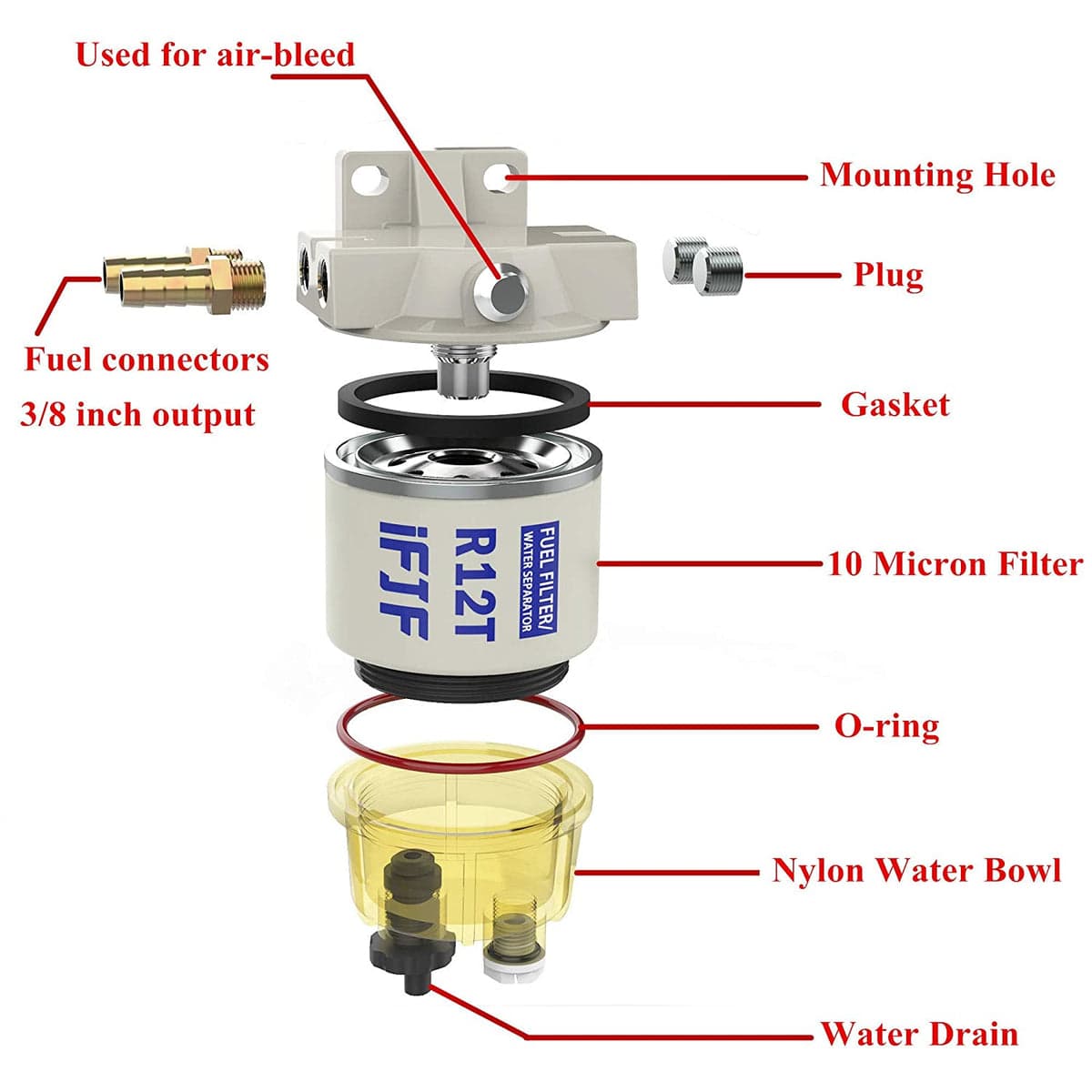

- Ready to install: Head, element, bowl, 4 brass fittings and 2 plugs ship as one kit — nothing else to source.
- Clear drain bowl: See water accumulation at a glance and drain it with the petcock, without removing the element.
- 10-micron media: A 120AT-style spin-on element traps water and particulates before they reach the fine filter and injectors.
- Anodized 6061 head: Standard NPT ZG1/4-19 inlet and outlet ports, rated to 15 PSI on the suction side.
- 15 GPH flow: Handles primary filtration for mid-displacement diesels, generator sets and mobile equipment.
Specifications
Applications
📄 Downloads
- FJ-R12T-datasheet-en.pdf · 2 KB
