FJ-FE-R12T

R12T Marine Fuel Water Separator Assembly, 120AT

Fuel FiltersCE / ISO 9001

Ready-to-install R12T assembly combining the anodized aluminum filter head, a 10-micron 120AT-style spin-on element and a transparent nylon water collection bowl. Standard NPT ZG1/4-19 ports provide 15 GPH primary filtration and water separation for diesel marine, industrial, generator and automotive applications.

$17.99/ unit · referenceMOQ:1 units
Qty
min 1 units
Tier Pricing (USD / unit)
QtyUnit Price
1+ units$17.99
10+ units🎯 Recommended$16.19
50+ units$14.75
100+ units$13.49

📋 Key Specs

Filtration10 micron (nominal)
Flow rate15 GPH (57 LPH)
Port threadNPT ZG1/4-19
Head materialAnodized aluminum
Bowl materialClear nylon
ApplicationsDiesel marine, industrial, generator, automotive

❓ FAQ

FJFilter (Wuhu Youfan Auto Parts Co., Ltd.) is a precision filtration manufacturer. We design and produce fuel, oil, air, hydraulic, marine, cabin-air and CCV filters for global B2B buyers, with in-house tooling, die-casting, injection moulding, CNC machining and assembly in a 15,000 m² plant with 20+ lines; IATF 16949 and ISO 9001 certified, OEM/ODM and customer-brand production supported.

MOQ varies by product: 5–100 units for standard parts (see product page). Tier pricing decreases with volume. Custom parts usually ≥ 50 units, evaluated by process.

Stock/short-run: 8–50 days; bulk orders 35–60 days, depending on the actual order quantity and the agreed shipping method; custom 45 days or more incl. sampling, confirmed with the quotation. Note your deadline in the inquiry — sales will confirm capacity.

Add products to the inquiry list and submit with contact info. Sales contact you within 24h and issue a formal quotation (tier pricing + proforma invoice) within 72h. For custom parts or items developed from drawings, the quotation timeline is agreed with you case by case. The AI assistant can pre-fill inquiries in chat.

Yes. We develop from drawings/samples and support private labeling. Process: evaluation → sampling (15–40 days if a separate sample round is required) → approval → mass production.

Payment: T/T 30% deposit + 70% before shipment / L/C / Trade Assurance. Shipping: FOB Ningbo/Shanghai, CIF or DDP; EU & NA warehouses; sea/air/express. Where customs clearance and declaration are involved, freight is charged at actual cost and settled against the freight forwarder's invoice; for small consignments you may specify the shipping method, but not the carrier.

ISO 9001 & IATF 16949; CE/UL/ATEX on key products. Every batch ships with inspection reports; third-party inspection (SGS/BV) supported.

Description

Product Overview

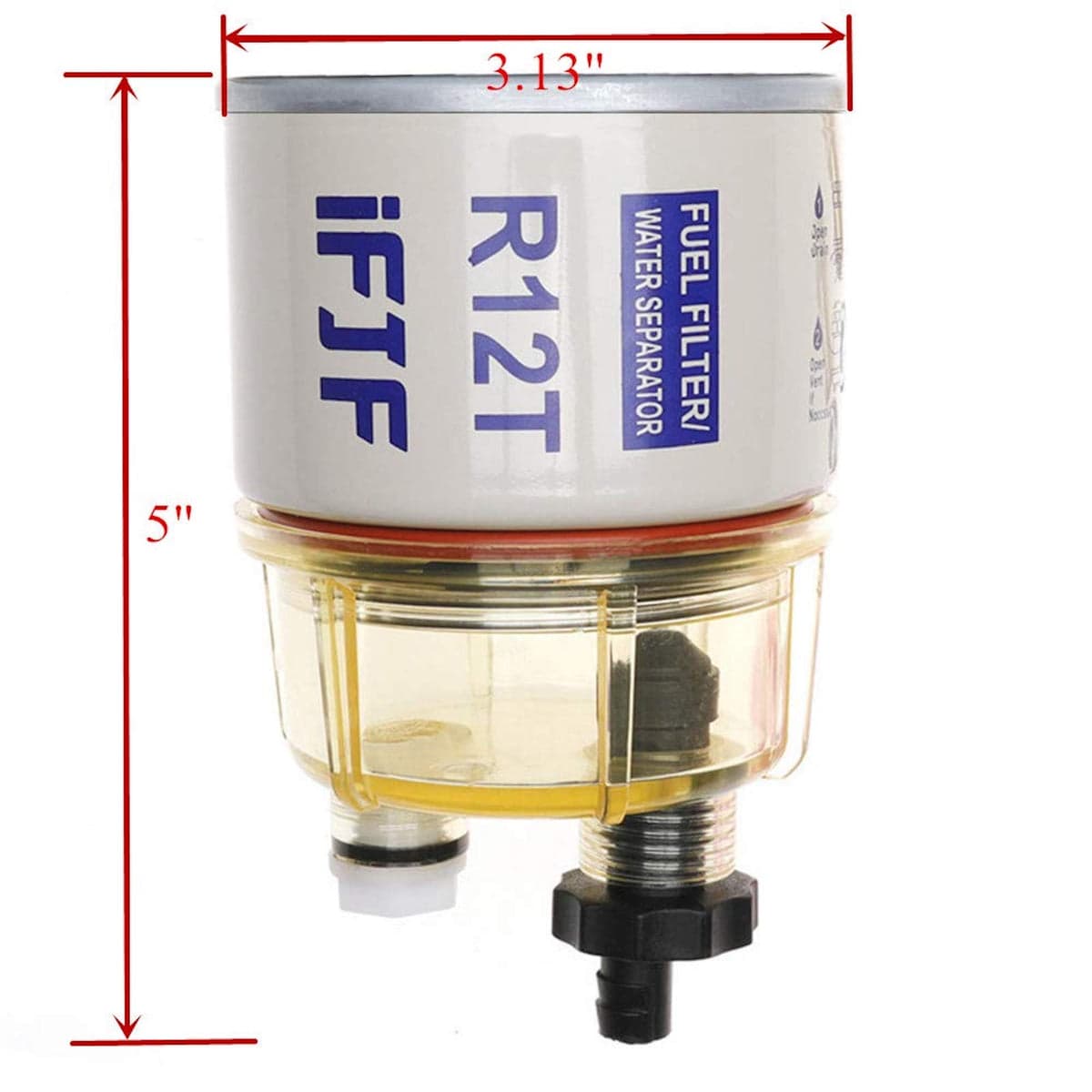

A ready-to-install R12T assembly combining the anodized aluminium filter head, a 10-micron 120AT-style spin-on element and a transparent nylon collection bowl. Standard NPT ZG1/4-19 ports and a 15 GPH rating cover primary filtration and water separation for diesel marine, industrial, generator and automotive engines.

Key Features

  • Ready to install: Head, element and bowl ship pre-assembled — connect the lines and go.

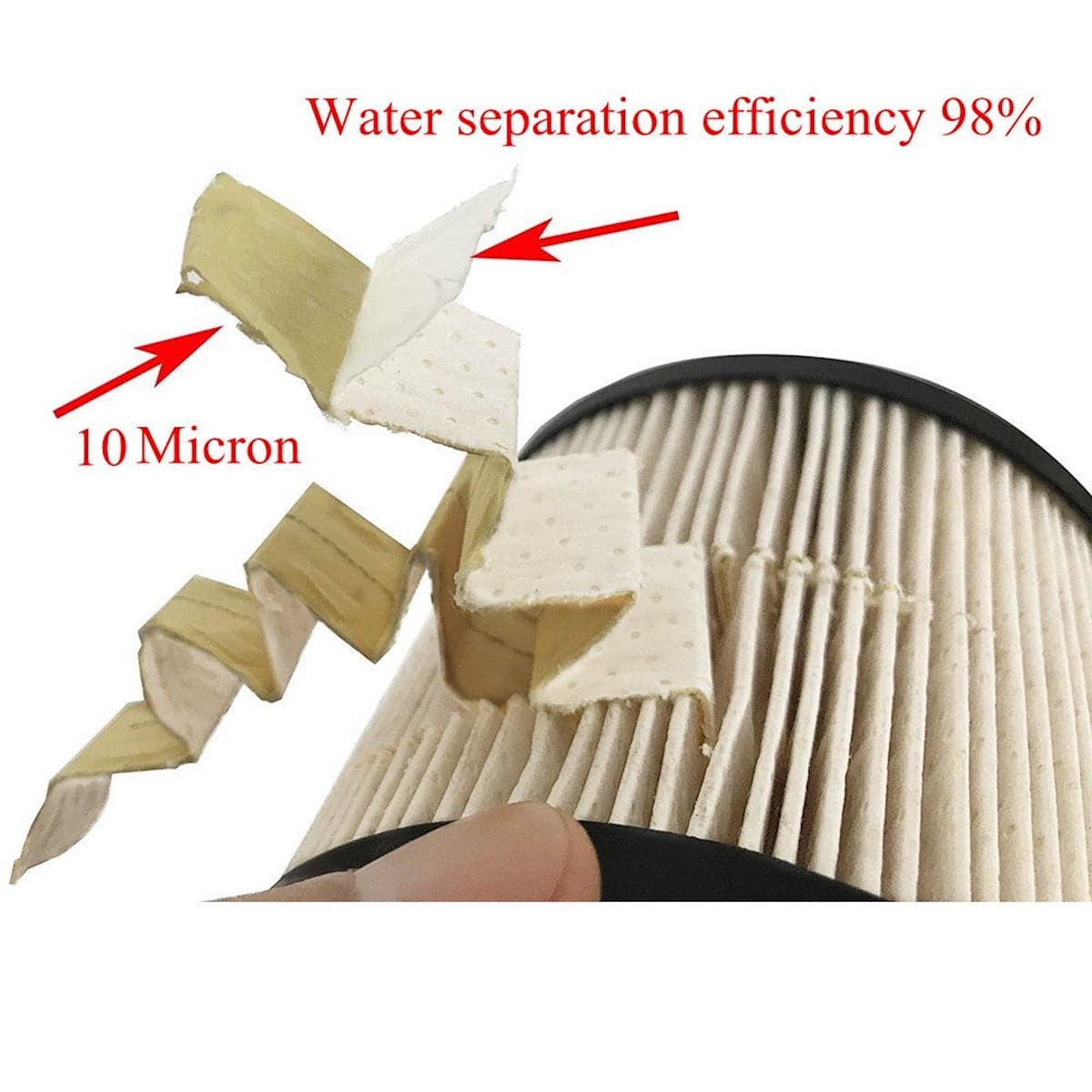

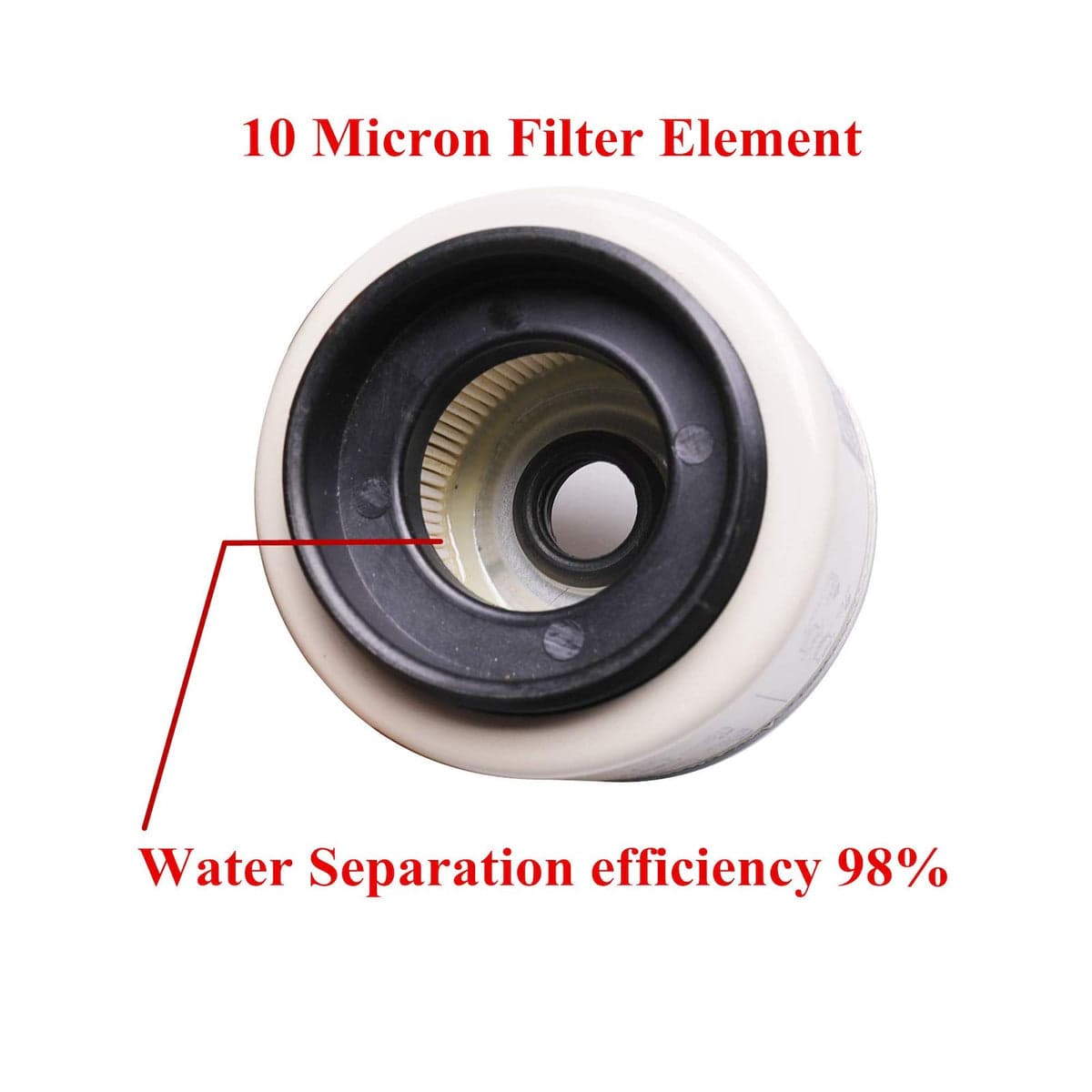

  • 10-micron filtration: Separates free water and traps particulates as first-stage protection.

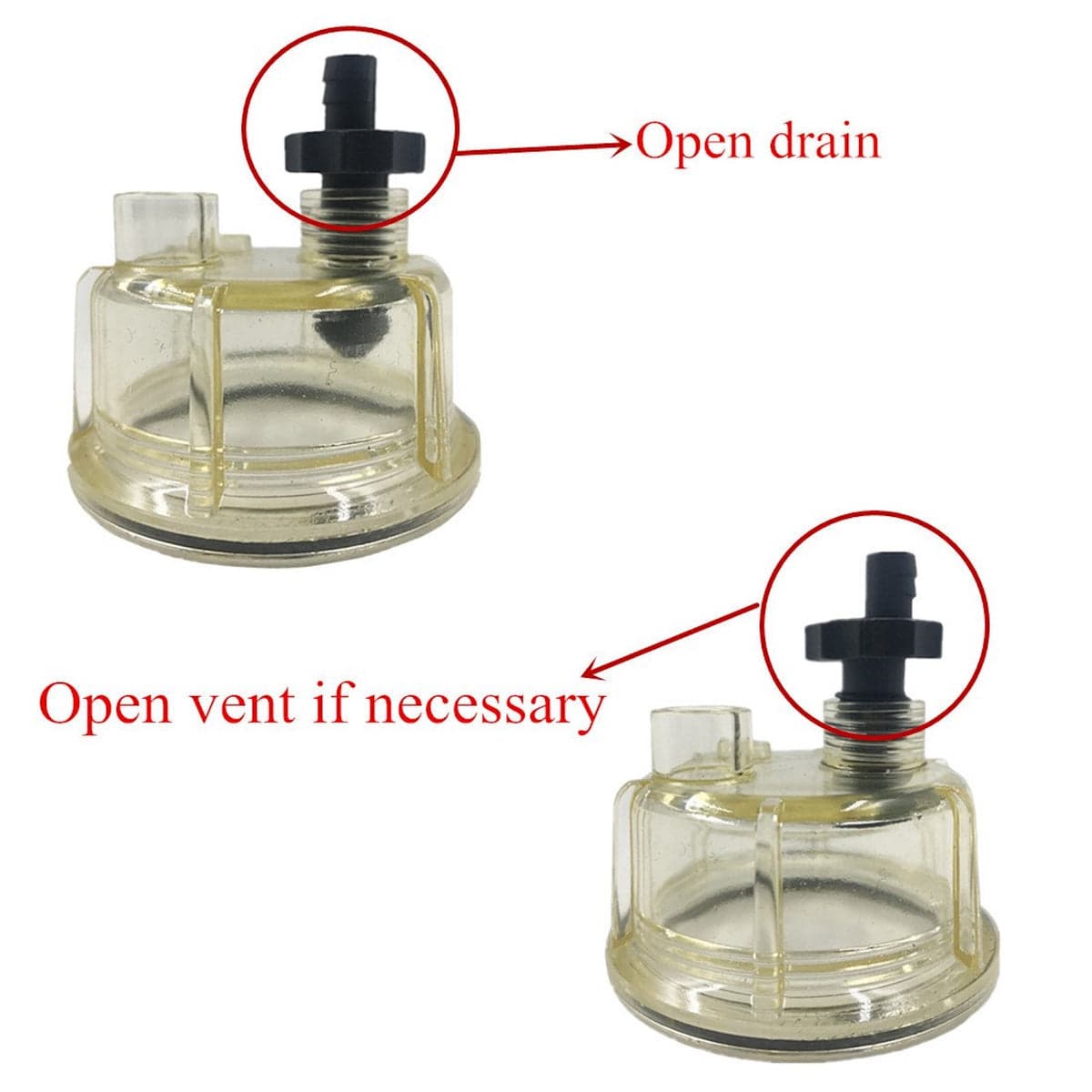

  • Transparent nylon bowl: Check for water visually and drain it with the petcock as soon as a layer forms.
  • 15 GPH flow: Covers fuel demand for mid-displacement diesels and generator sets.
  • NPT ZG1/4-19 ports: Standard threads that mate directly with common diesel fittings.

Specifications

Filtration — 10 micron (nominal)
Flow rate — 15 GPH (57 LPH)
Port thread — NPT ZG1/4-19
Head material — Anodized aluminum
Bowl material — Clear nylon
Applications — Diesel marine, industrial, generator, automotive

Applications

Marine diesel — Primary fuel filtration on outboard and inboard engines
Industrial equipment — Fuel conditioning on stationary diesels and work machinery
Generator sets — Filtration and water separation on standby power units
Automotive diesel — Fuel pre-filtration for light trucks and pickups
